Users

MIVO Connect supports multiple types of users.
There are two types of users:

  • Normal users
  • API users

Normal users#

Normal users are "human users" that can log in using a standard web-based login.

There is a default user called admin with administrator privileges. This user cannot be removed.

User roles#

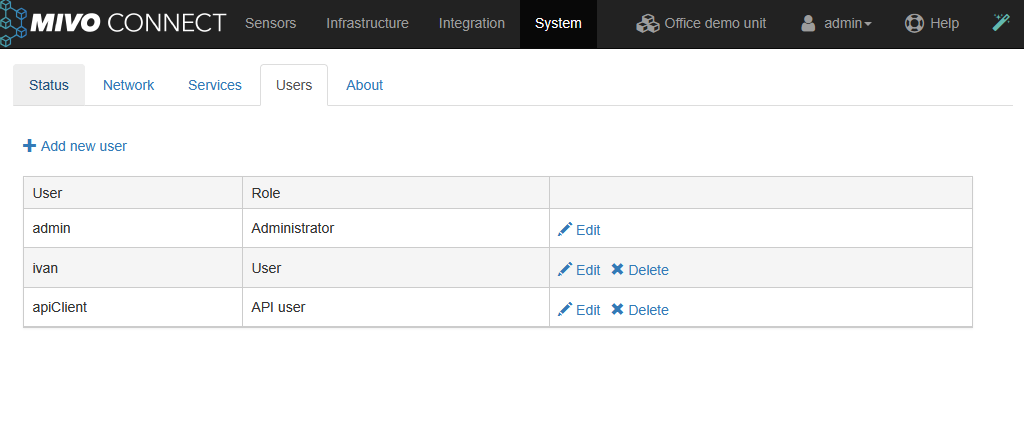

We support multiple users with two roles:

  • Administrator
  • User

Role differences#

Administrator

  • Can create and delete other users
  • Has full access to user management

User

  • Can only view and edit their own account
  • Cannot manage other users

More granular roles and permissions are currently under development.

API users#

API users are intended for system-to-system communication and are not associated with interactive (human) use.

They authenticate using OAuth2 with the private_key_jwt client authentication method to obtain a Bearer token, which is then used when calling the API.

API users: - Cannot log in via the web interface - Represent applications or external systems - Are used exclusively for API access and integrations - Authenticate by generating a signed JWT and exchanging it for an access token

Authentication#

API users obtain an access token via the /api/token endpoint.

This requires: - grant_type=client_credentials - A client_id - A signed JWT (client_assertion) using the client’s private key

The issued token: - Is a Bearer token - Contains the role APIUser - Must be included in API requests using the Authorization header

API capabilities#

API users interact with the system through a REST API focused on sensor data and control.

Available operations include:

  • List active sensors
    GET /api/MivoAPI/v1/ListActiveSensors
    Returns all sensors with a valid license

  • Read sensor data
    POST /api/MivoAPI/v1/ReadSensor/{uid}
    Retrieves values and status information for a specific sensor

  • Write sensor values
    POST /api/MivoAPI/v1/WriteValues
    Writes one or more values to sensors (e.g. setpoints or configuration)

All endpoints: - Require a valid Bearer token - Use JSON request and response formats

Sensor data model#

Sensors are identified by a unique UID and expose multiple values such as: - Temperature - Energy consumption - Flow and volume - Voltage, current, and power - Status and error codes

Sensor readings include: - A timestamp - A result/status code - A list of measured values - Optional status or alarm indicators

API documentation (Swagger)#

All endpoints and data models are documented via Swagger (OpenAPI), available at:

http://<device-hostname-or-ip>/swagger
